Overview

P0402V Series

The P0402V Series is an ultra low capacitance ESD component designed to protect very high-speed data interfaces. These devices have a typical capactiance of only 0.05pF (I/O to GND) and is compatible with the ESD immunity requirements of IEC 61000-4-2. Available in an 0402 molded ceramic package configuration, this device offers a small footprint for applications that have tight board spaces such as handheld electronics. The P0402V Series has a high response time as well as low leakage current of 0.10µA.
0402 Ceramic
Release Date: November 29, 2012
Rev. Date: October 7, 2015
Rev No.: 3

SERIES FEATURES

IEC 61000-4-2 (ESD): Air - 15kV (Typical), 25kV(Max)
IEC 61000-4-2 (ESD): Contact - 8kV (Typical), 15kV(Max)
Low Leakage Current Less Than 0.10µA
Fast Response Time
Protects One Bidirectional Line
Ultra Low Capacitance: Less Than 0.15pF (Typical)

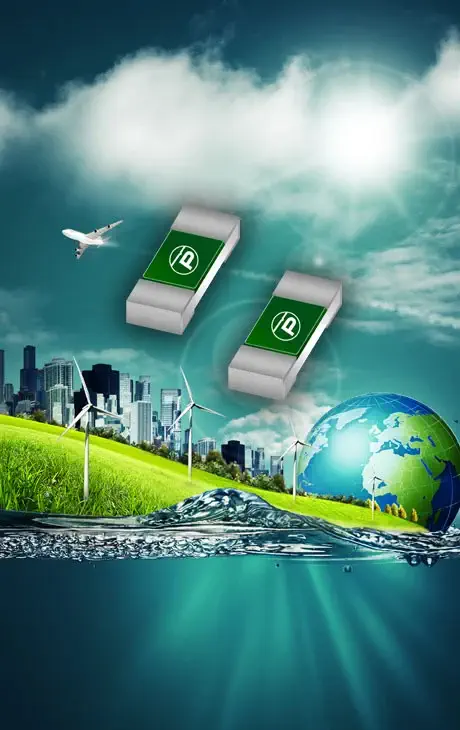

Molded Ceramic 0402 Package
RoHS Compliant
REACH Compliant

APPLICATIONS

HDMI
DVI
Display Port
Unified Display Interface (UDI)
Mobile Display Digital Interface (MDDI)
Gigabit Ethernet
USB2.0 & USB3.0
IEEE 1394 Interface

Electrical Characteristics

Safeguard Your Interface

Part Number Stand-off Voltage
VWM
Volts		 Breakdown Voltage
V(BR)
Volts		 Clamping Voltage
VC
Volts		 Peak Current
IPP
Amps		 Leakage Current
IR
µA		 Capacitance
C
pF		 Power
8x20µs
Watts		 Lines
P0402V055.0035.000.100.151
P0402V1515.0035.000.100.051
