PLC03-3.3-DFN

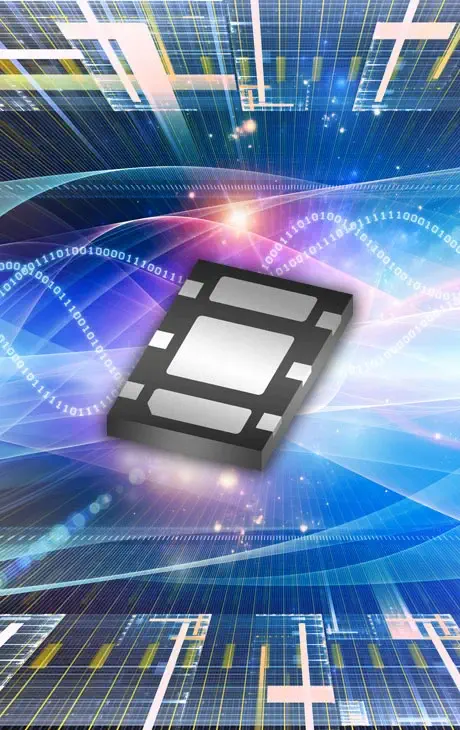

The PLC03-3.3-DFN is a low capacitance, high powered TVS array available in a six lead DFN package. This device is designed to protect high speed data line applications from the damaging effects of ESD, EFT and secondary transient threats. The PLC03-3.3-DFN has a peak pulse power rating of 1800 Watts for an 8/20µs waveshape. This devices meets the IEC 61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.
DFN-6
Release Date: February 10, 2014
Rev. Date: February 27, 2023
Rev No.: 2

SERIES FEATURES

IEC 61000-4-2 (ESD): Level 4 - Air 15kV, Contact 8kV
IEC 61000-4-4 (EFT): 40A 5/50ns
IEC 61000-4-5 (Surge): 94A, 8/20µs - Level 4(Line-Gnd), 48A, Level 1(Power) & 48A, Level 4(Line-Line)
100A (2/10µs) per Bellcore GR1089 (Intra-Building)
1800 Watts Peak Pulse Power per Line (tp=10/1000µs)
ESD Protection > 25 kilovolts
Low Capacitance: 4.5pF Typical
Telecom/Diode Bridge
RoHS Compliant
REACH Compliant

APPLICATIONS

T1/E1 Line Cards
xDSL Interfaces
Ethernet 10/100 Base T
Set Top Box Interface

Electrical Characteristics

Safeguard Your Interface

Part Number Stand-off Voltage
VWM
Volts		 Breakdown Voltage
V(BR)
Volts		 Clamping Voltage
VC
Volts		 Peak Current
IPP
Amps		 Leakage Current
IR
µA		 Capacitance
C
pF		 Power
8x20µs
Watts		 Lines
PLC03-3.3-DFN3.002.8018.002.004.5018002
