Overview

PLC01-6

The PLC01-6 is a high powered multi-line low capacitance transient voltage suppressor array that provides board level protection for Bellcore 1089, standard TTL and CMOS bus line applications against the damaging effects of ESD, tertiary lightning and switching transients. This device has a peak pulse power rating of 1500 Watts for an 10/1000µs waveshape. The PLC01-6 meets the IEC 61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.

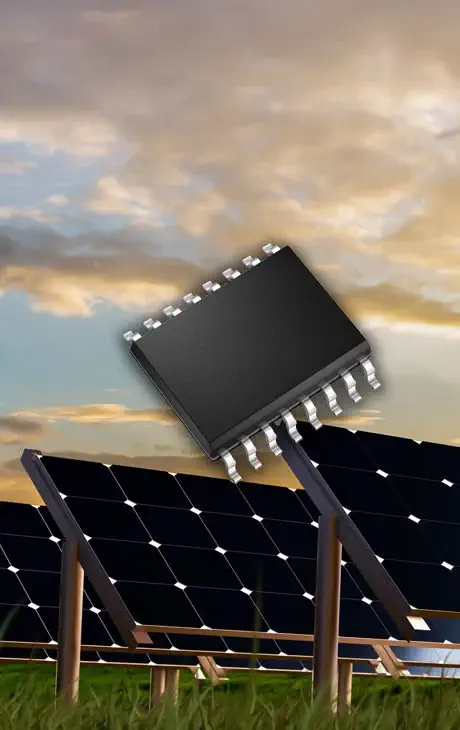

SOIC-16 Wide Body
Release Date: August 1, 1996
Rev. Date: May 16, 2018
Rev No.: 10

SERIES FEATURES

IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
IEC 61000-4-4 (EFT): 40A - 5/50ns
IEC 61000-4-5 (Surge): 48A, 8/20µs, L3(Line-Gnd), L4(Line-Line) & L1(Power)
1,500 Watts Peak Pulse Power per Line (tp=10/1000µs)
Low Clamping Voltage
100A (10/1000µs) per Bellcore 1089(Intra-Building)
200A (10/160µs) per FCC Part 68
ESD Protection > 25 kilovolts
Bidirectional Configuration
Protects 1 Line
RoHS Compliant
REACH Compliant

APPLICATIONS

T1/E1 Line Cards
Telecommunication Equipment
xDSL, USB, SCSI & Ethernet Interfaces
Cellular Base Stations
Data & Bus Lines for FCC Part 68 Applications

Electrical Characteristics

Safeguard Your Interface

Part Number Stand-off Voltage
VWM
Volts		 Breakdown Voltage
V(BR)
Volts		 Clamping Voltage
VC
Volts		 Peak Current
IPP
Amps		 Leakage Current
IR
µA		 Capacitance
C
pF		 Power
8x20µs
Watts		 Lines
PLC01-66.008.0016.00200.0025.0050.0090001
